Upgrade Oracle Database 10g (10.2.0.4) to 11g(11.1.0.6.0) Release 1 - Redhat Enterprise Linux 5

Pre-Installation Steps:
     Stop all oracle services running on the server.
    Create a new directory for storing oracle database 11g sfitware
    eg: /u01/app/oracle/product/11.1.0

   (Now I have 2 database product directory 1 is 10g another is 11g)
   $ pwd

   /u01/app/oracle/product
   $ls

   10.2.0  11.1.0

    11g OS Package requirements
        make-3.81

        binutils-2.17.50.0.6
        gcc-4.1.1
        libaio-0.3.106
        libaio-devel-0.3.106
        libstdc++-4.1.1
        elfutils-libelf-devel-0.125
        sysstat-7.0.0
        compat-libstdc++-33-3.2.3
        libgcc-4.1.1
        libstdc++-devel-4.1.1
        unixODBC-2.2.11
        unixODBC-devel-2.2.11
   Verifying Kernel Parameters
        kernel.sem = 250 32000 100 128
        kernel.shmmax=536870912
        kernel.shmmni=4096
        kernel.shmall=2097152
        fs.file-max=65536
        net.ipv4.ip_local_port_range=1024 - 65000
        net.core.rmem_default=4194304
        net.core.rmem_max=4194304
        net.core.wmem_default=262144
        net.core.wmem_max=262144

        (above mentioned parameters you can found at /etc/sysctl.conf)
        a restart is required if any changes happend to kernel parameters (you can use sysctl -p , if you are not
        interested to restart now, but restart is advisable)

       set the ORACLE_HOME to new path
       ORACLE_HOME=/u01/app/oracle/product/11.1.0;export ORACLE_HOME
       change the PATH and LD_LIBRARY_PATH , becuase existing environemnt directly point to 10g
       oracle home

Installation
      Extract the 11g Database release 1 zip file to temporary location and run the installer using the following command
      $./runInstaller

Select the product you want to install (default oracle 11g)

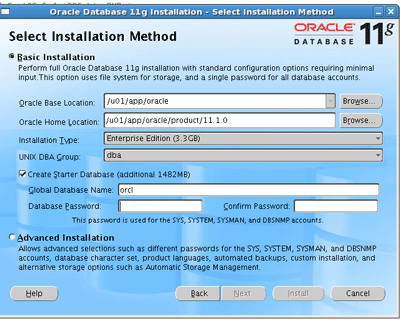

Select the installation method advanced Installation

Select the Enterprise Option

Install location

Prerequisite Checks

Update existing database to "No"

Install Software only

OS privileged groups

Installtion Summary

Progress Screen

Finish the instllation


Upgrade:

set the enviroment variables to point new Oracle 11g Home
(ORACLE_HOME, ORACLE_SID,LD_LIBRARY_PATH,PATH and CLASS_PATH)

start the 11g Home database listner
(Please take the backup before starting the upgrade process)

to start the upgrade process enter the follwing command
$dbua

Introduction Screen

Review or select the database for upgrade

Dump Location (like udump, cdump and bdump locations)

Keep the default selection

Flsh recovery locations

Uncheck the invlid object compilation during upgrade (you can do this after finish the installation)

If you didn't taken backup, then this is the last chance to take the bakup

Upgrade progress

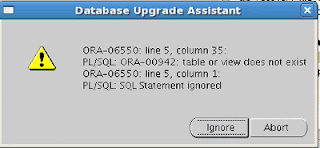

You can safely ignore this message (This issue is tracked with Oracle bug 6322672.)

You can safely ignore this message (These errors do not result in any data loss. Therefore, you can ignore these errors. This issue is tracked with Oracle bug 6705429.)

Finish the upgrade now.

Now we will compile all invalid objects in the database using the follwing command:

$sqlplus / as sysdba

SQL>@$ORACLE_HOME/rdbms/admin/utlrp

After the upgrade process you should set the COMPATITBLE Initialisation parameter to 11.0.0

If you are using SPFILE then use the follwing command
$sqlplus / as sysdba
SQL>ALTER SYSTEM SET COMPATIBLE = '11.0.0' SCOPE=SPFILE;

shutdown and restart the database

if you are using pfile instead of spfile then
shutdown the database  and edit the initialisaion parameter file (initXXX.ora)
COMPATIBLE = 11.0.0
start the database
